Peanut Kernels → Clean up → Magnetic separation → Stone removal → Crushing → embryo pressing → steaming and frying → pre-pressing → steaming and frying → secondary pressing → filtering → deacidification and drying → canning
Secondary pressing → Cake cooling → Pie

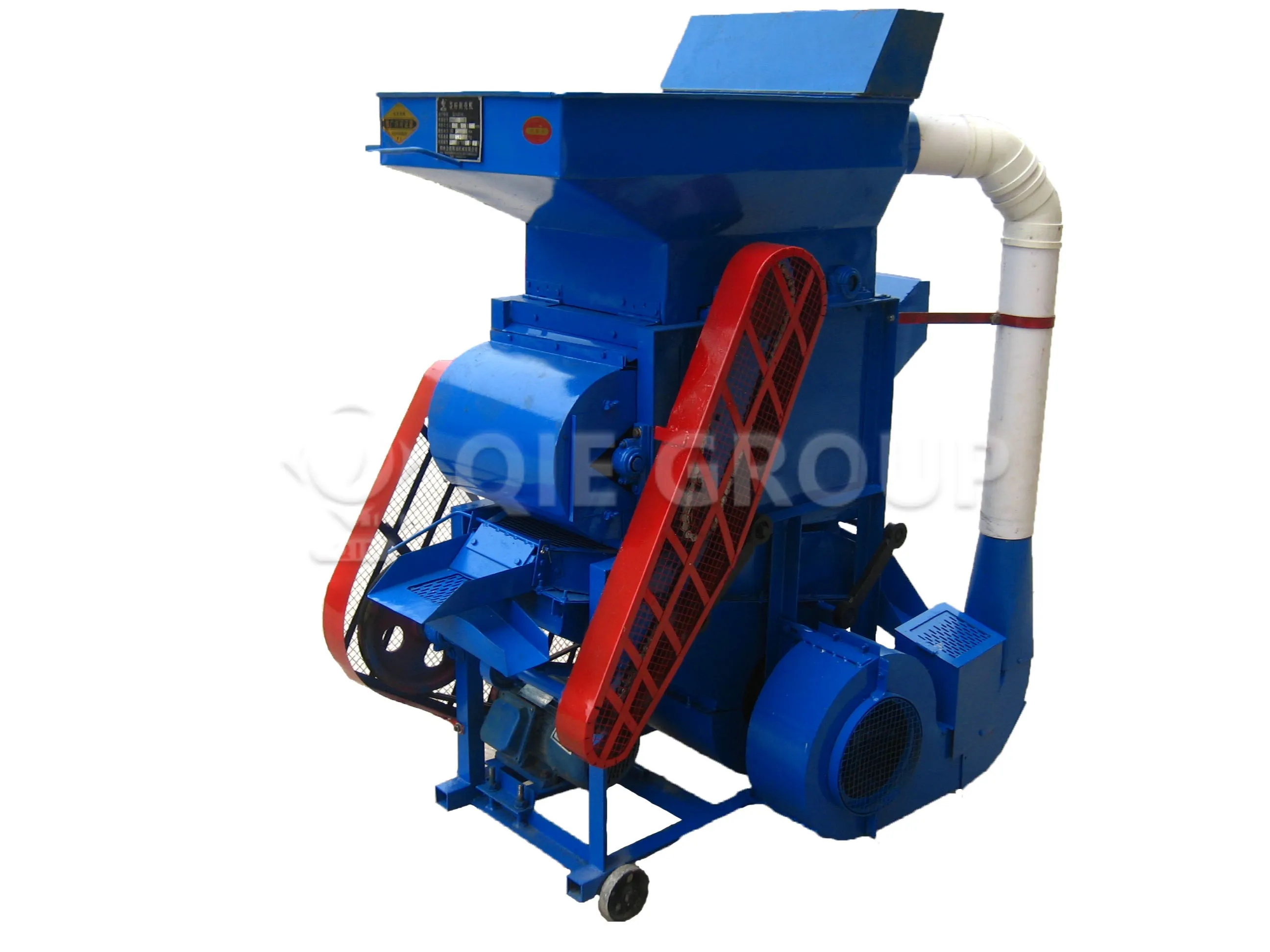

1) Peanut Shelling Machine
The equipment consists of a feed hopper, a rod roller, a slatted concave plate, a fan, a specific gravity sorting screen, an air conveyor, etc. It has a compact structure, stable performance, good durability, large processing capacity, low power consumption, easy operation, and a shelling rate of not less than 95%.

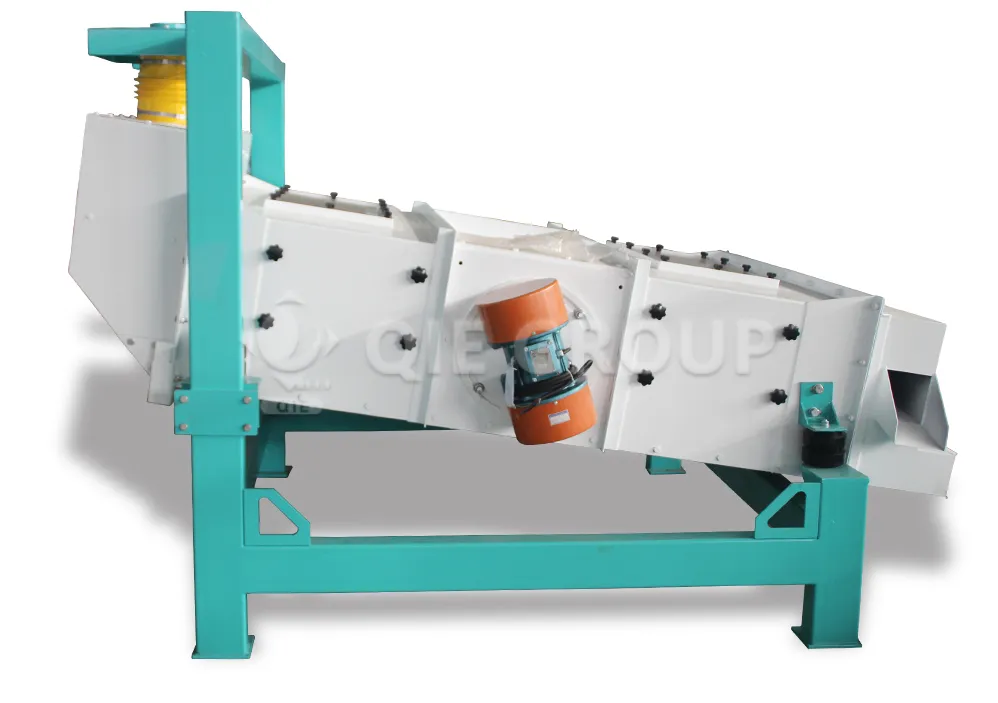

2) Cleaning sieve
In order to effectively achieve the cleaning effect, ensure a good operating environment and production stability, and improve the quality of finished products, the process is equipped with a high-efficiency vibrating screen to clean up large and small impurities.
3) Magnetic Separator
A non-powered magnetic separator is configured to remove iron impurities.

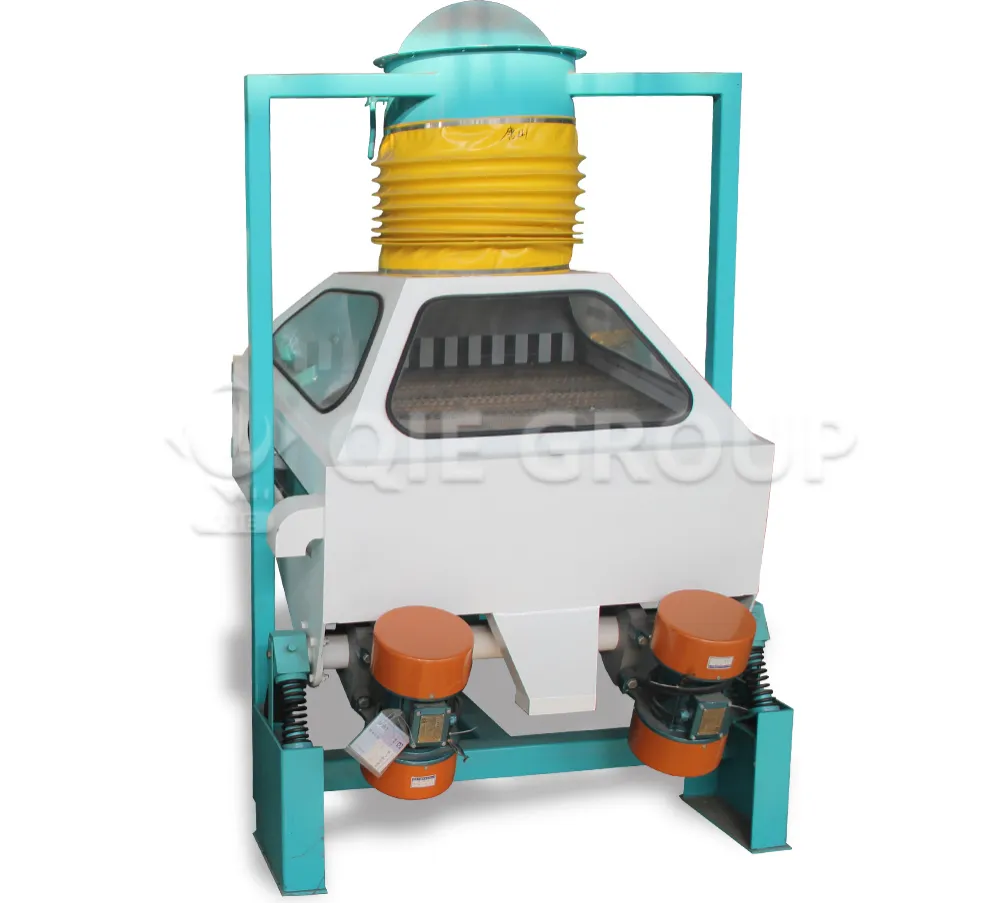

4) Gravity Stoner
A suction-type specific gravity stone remover is configured to remove the side stones and side mud.

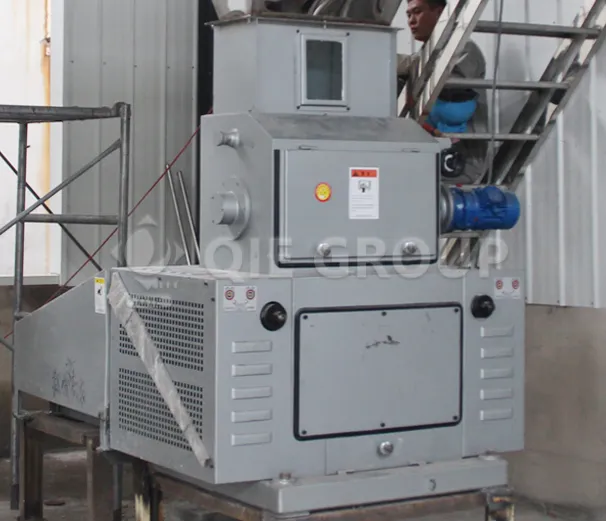

5) Toothed Roll Crusher
In order to ensure good softening and steaming and frying effects, peanuts are generally evenly broken into 4-8 pieces, and during steaming and frying, the temperature and moisture are evenly distributed, which is convenient for subsequent pressing.

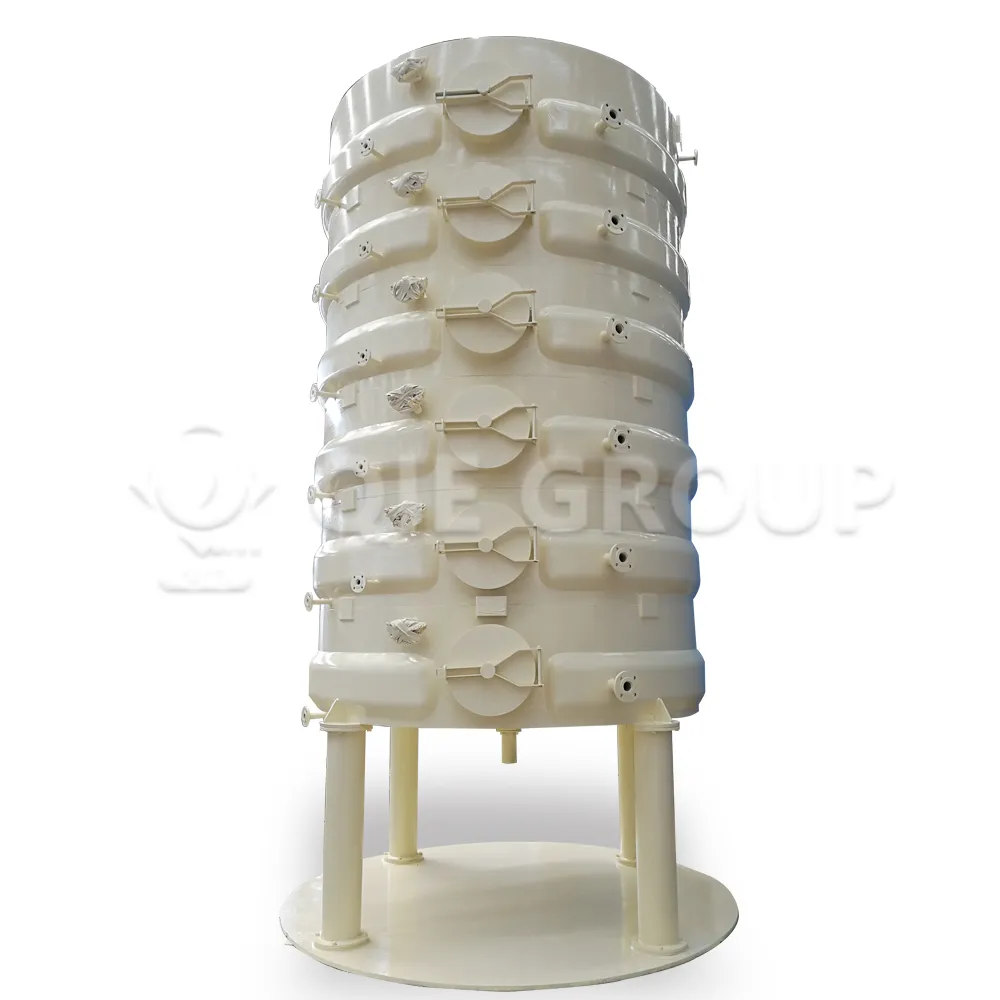

6) Steaming pan
This process adjusts the moisture and temperature of the peanuts to the appropriate range for easy pressing.

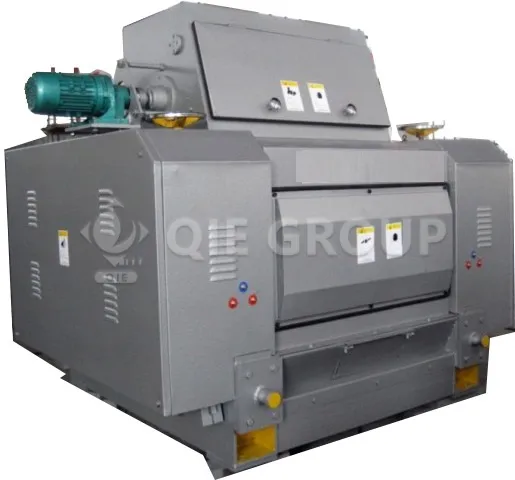

7) Embryo Press
Embryo pressing is the process of preparing a certain particle size into thin flakes of about 0.3 mm. The purpose is to extract the oil in the raw materials to the maximum extent in the shortest time during the leaching process, so that the residual oil in the meal is less than 1%.

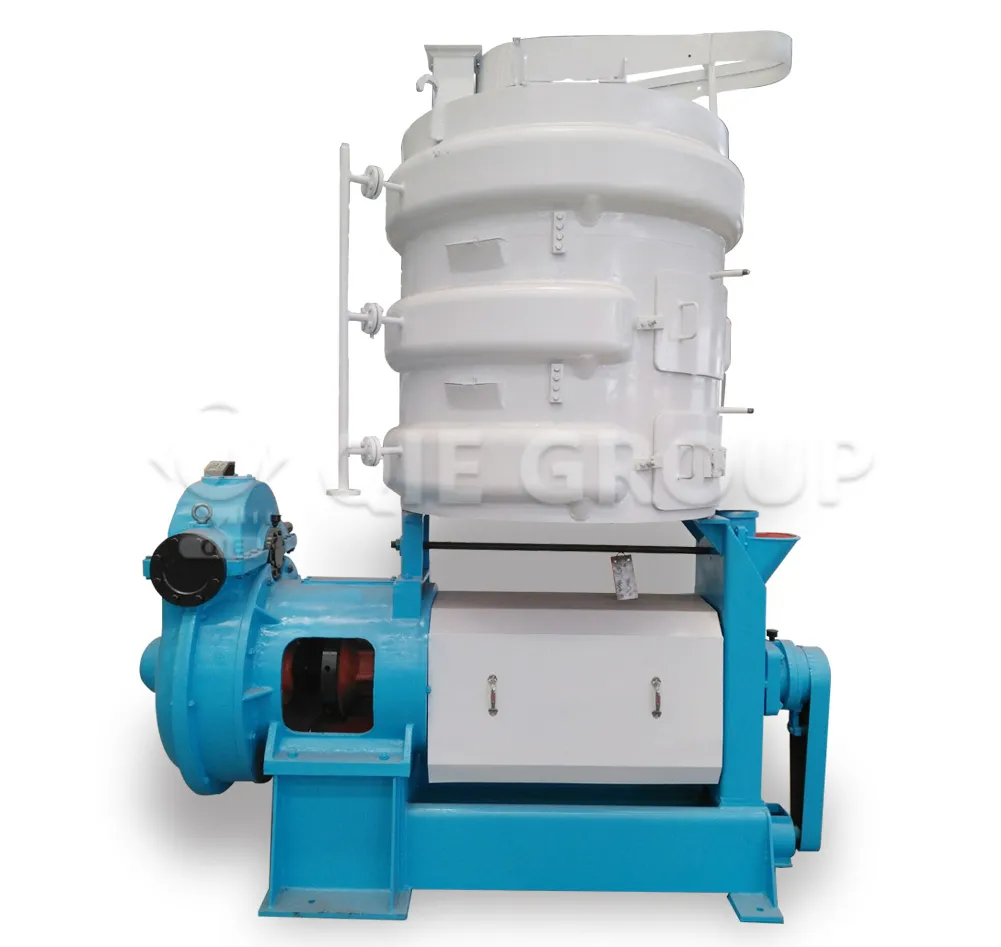

8) Pre-pressing machine
The screw pre-press can press a variety of vegetable oils such as peanuts, rapeseed, soybeans, and sunflowers. This model adopts the strip process and is suitable for the first pressing of materials with high oil content.

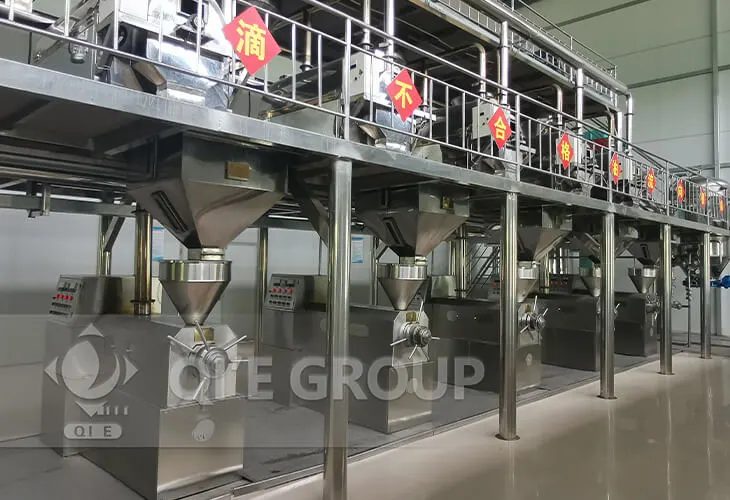

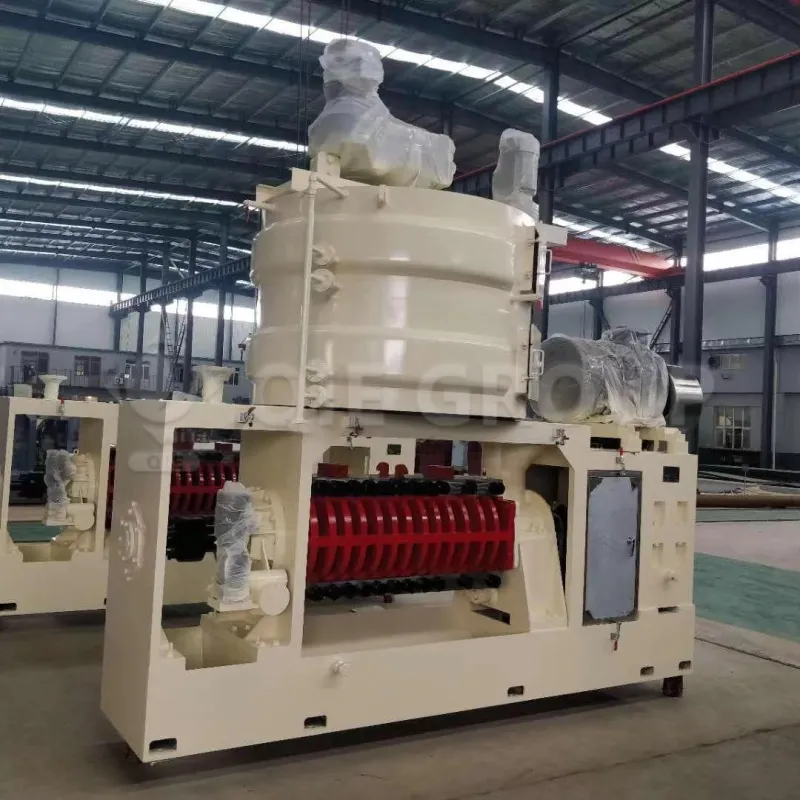

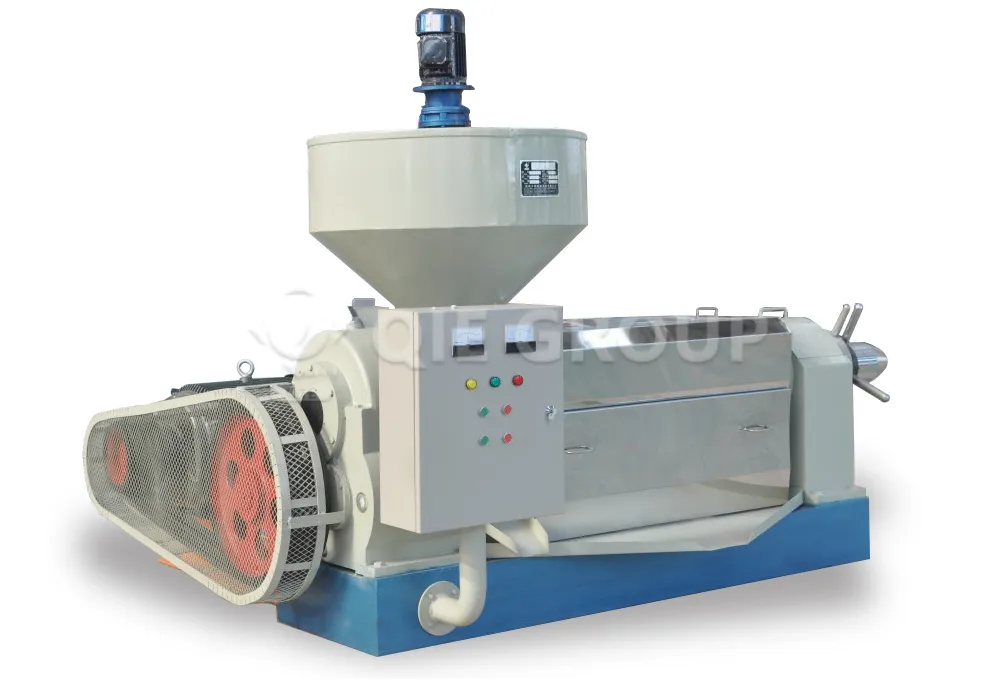

9) Screw oil press
This screw oil press is a very popular product of our company. It can press peanuts, rapeseed, soybeans, sunflowers and other vegetable oils. This model adopts the process of combining round bars and rows, equipped with micro-electric control, infrared heating, multi-stage pressing, and can be hot pressed or cold pressed. It is an ideal equipment for oil processing.

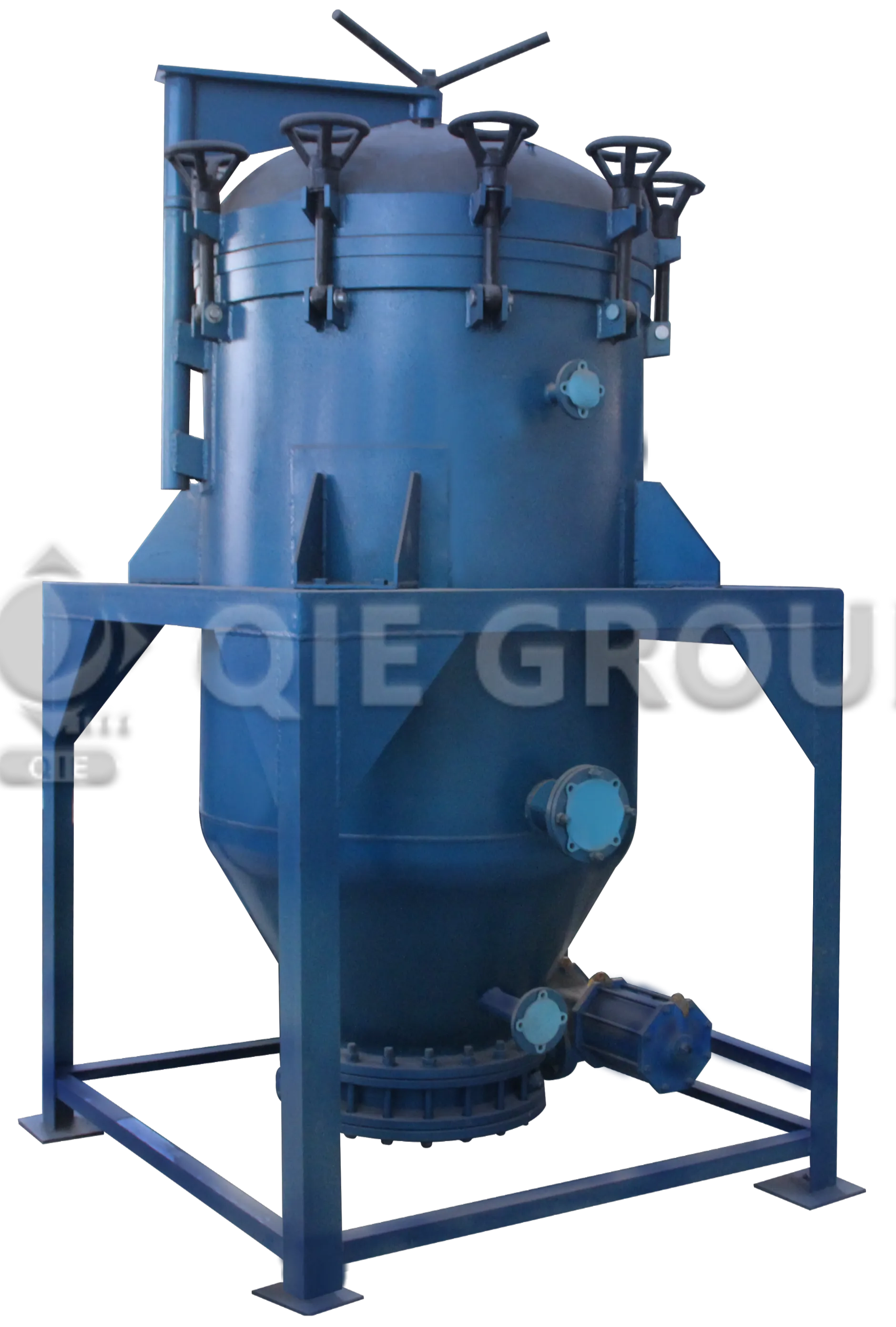

10) Vertical leaf filter
This machine is an efficient filtering system that uses a thick stainless steel mesh screen to remove coarse and fine residues in the oil and can automatically discharge the residue. The operation is convenient and continuous, with low labor intensity, and is convenient for subsequent fine filtering.
